Alpha & Delta AD01

Dual Driver Design for Excellent Sound Quality

In designing this IEM, we aimed to create a pair of earphones that has a strong punch bass while maintaining the overall clarity in the mids and the highs. To this end, a dual driver design is used for such purposes.

Modular Design

AD01 also adopts a modular design. This means that that drivers and the wires can be easily replaceable if damaged or lost. The drivers and wires will be made available for sale separately.

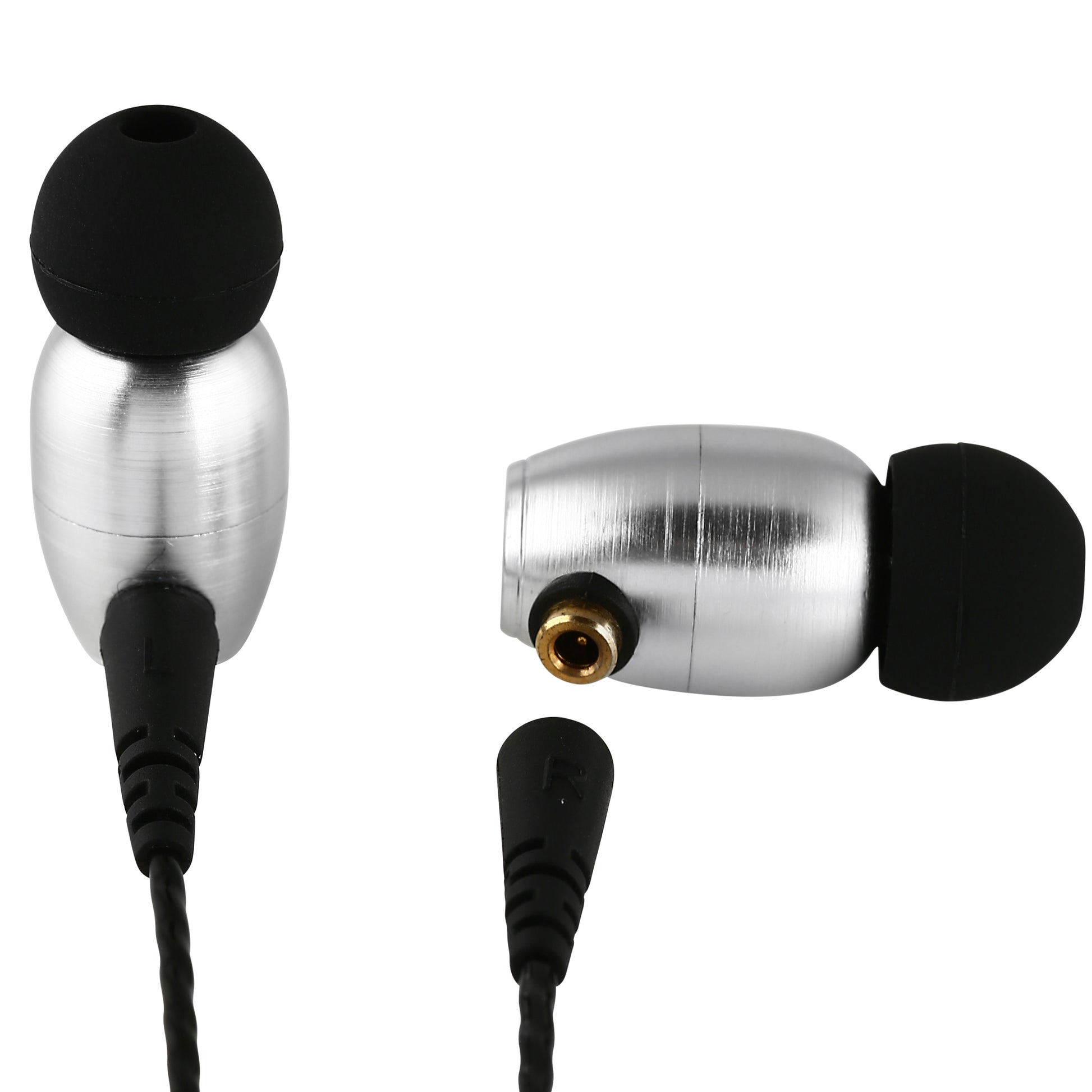

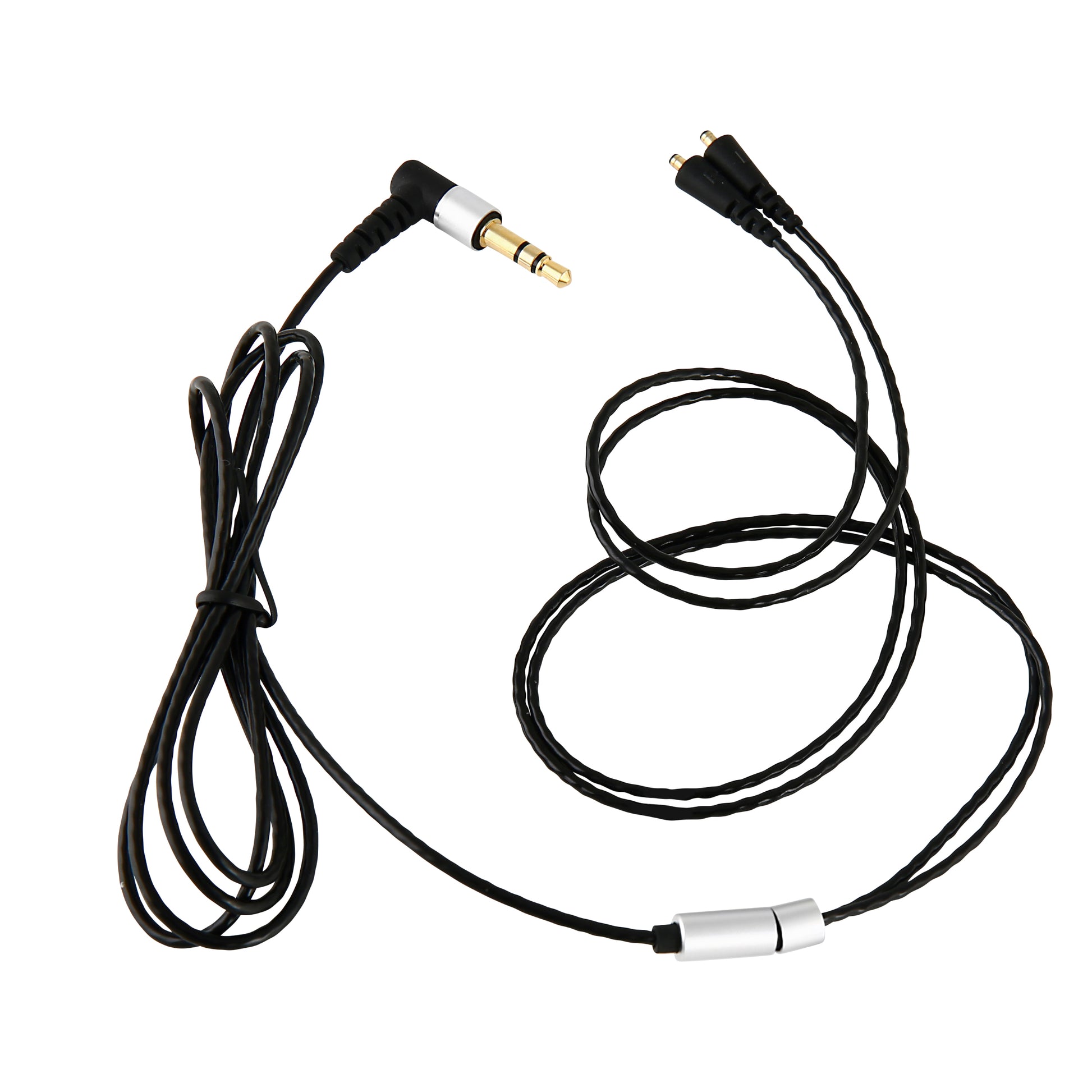

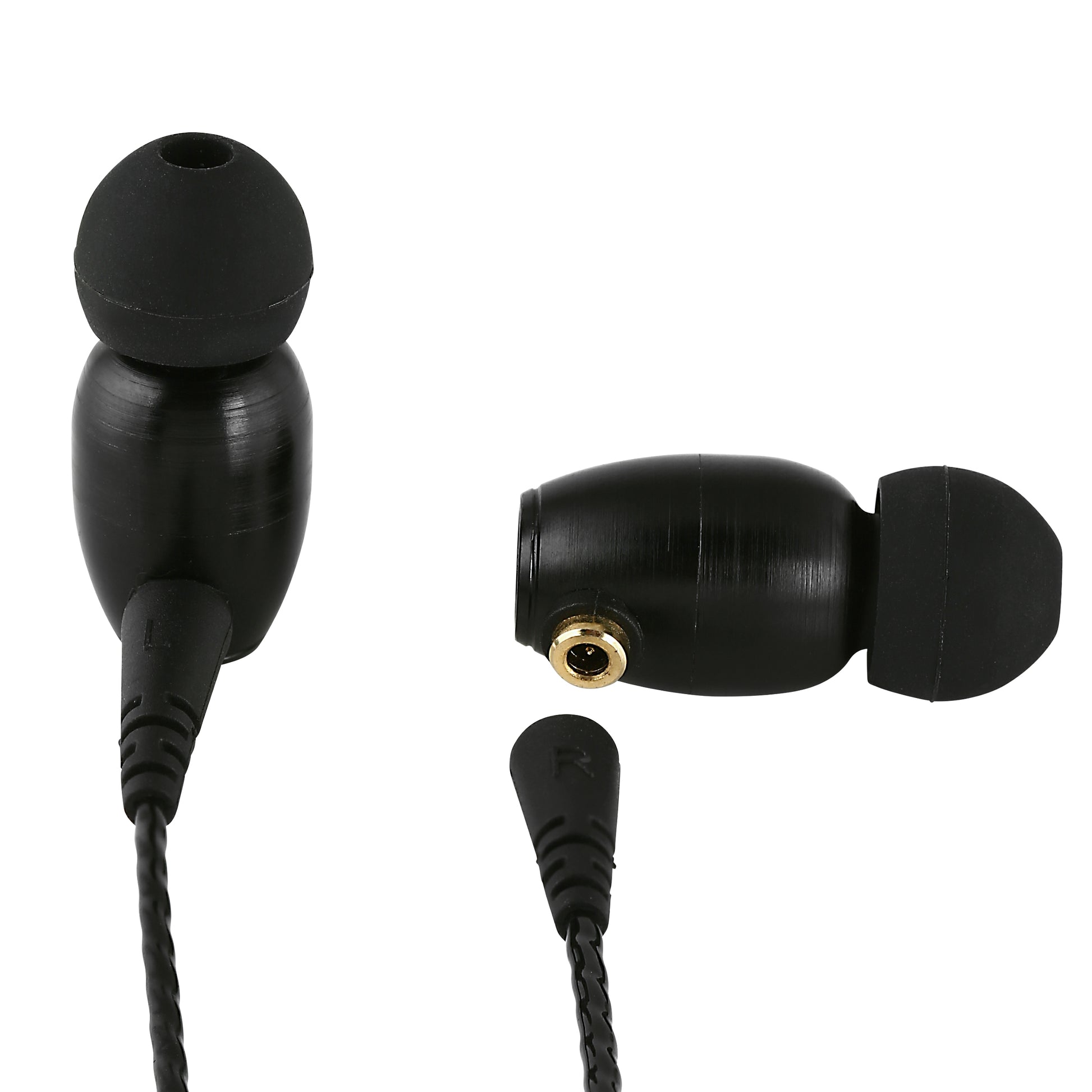

Well designed connection pins

For AD01 to use a modular design, the wires needs to be detachable. However, several existing solutions for the connector pins can lead to loose connection overtime. To this end, AD01 overcomes such build quality issues by adopting the 2mm dc plug connector pins which are extensively tested for reliability.

Accessories:

• 1 pair of foam tips
• 3 pairs of biflange tips
• 6 pairs of silicon tips of various sizes
• 1 hard case
• 1 pair of ear guides

Specification:

• Driver unit: 9.8mm and 6.0mm Dual Dynamic Driver
• Rated Impedance: 9 Ohm
• Sensitivity: 102 dB/mW
• Frequency response: 10Hz- 25KHz
• Rated power: 10 mW
• Maximum input power: 30 mW
• Plug: 3.5mm dual-channel plug
• Cable: 1.30 mm 18N OFC cable
